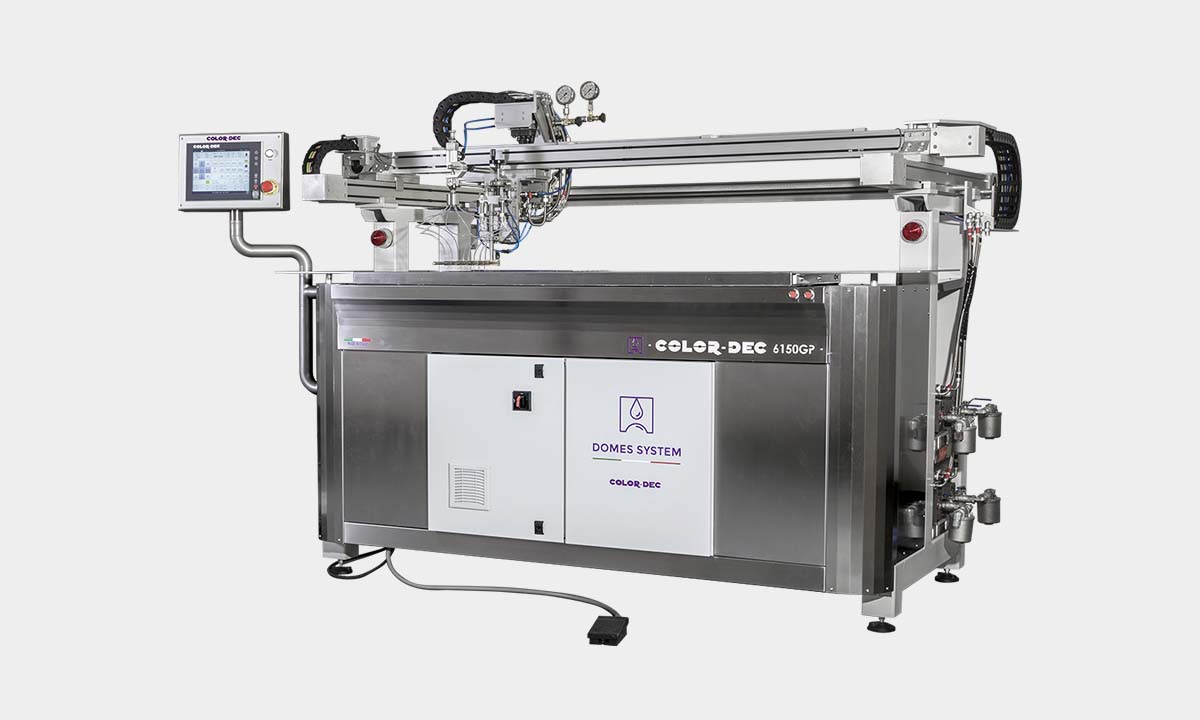

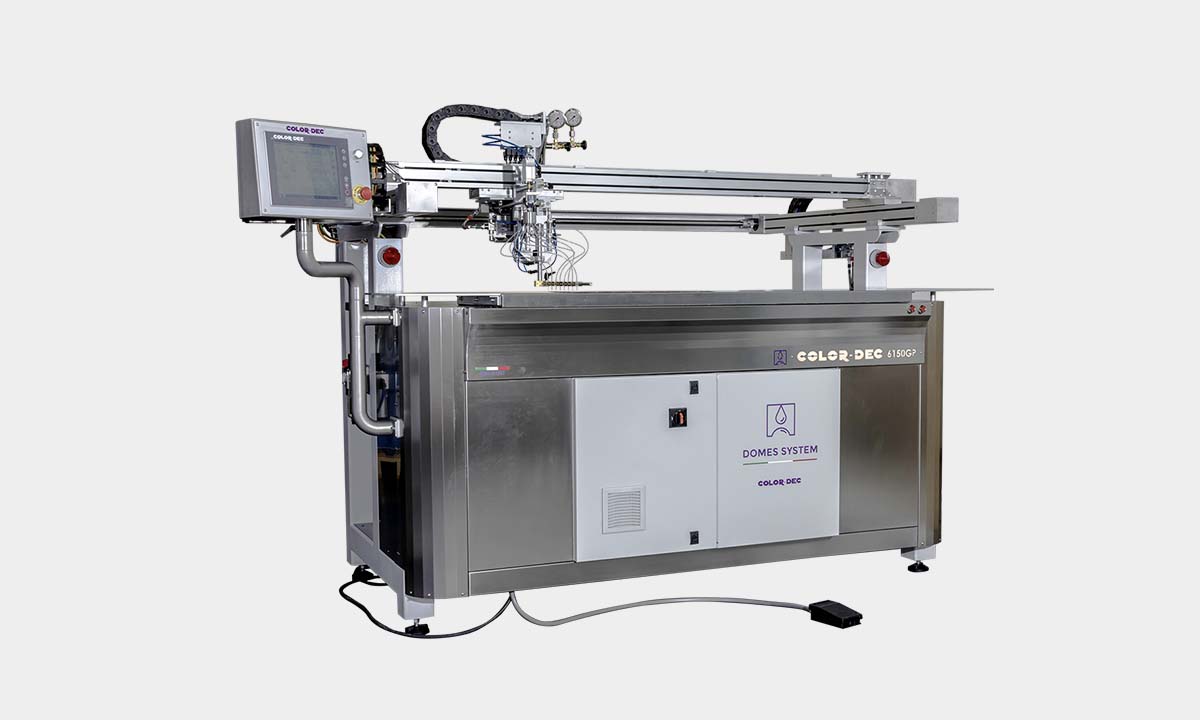

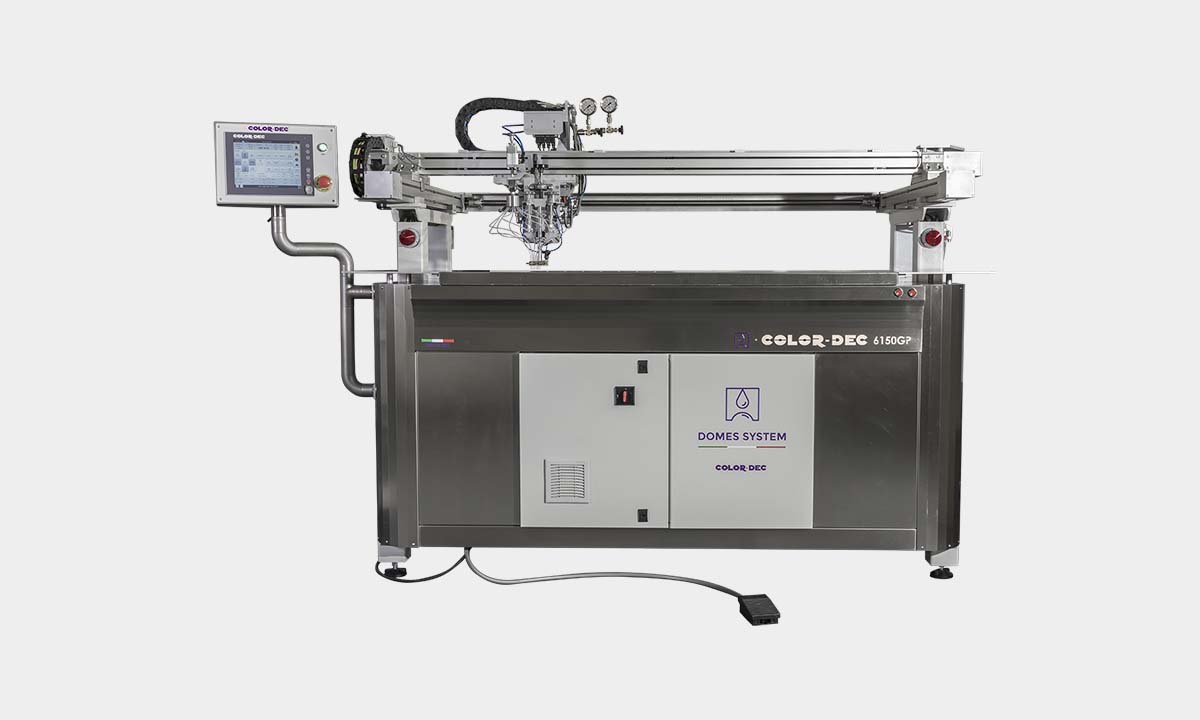

Advanced Interpolated 3 axes dispensing equipment with gear-pump metering group.

Advanced multi-axes equipment with interpolated X-Y-Z motion

Continuous Feed external Degassing System with 4 tanks, 46L capacity each

AC brushless servo-motors to ensure exact positioning of dispensing head

AC brushless servo-motors to ensure smooth rotation of gearpumps

Pneumatic Z Axis

High performing brushless gear-pump metering group

  • Best Badges Adhesion Technology
  • Best Badges Adhesion Technology
  • Pressure Domes System

Advantages of Gear-Pumps:

Allows for precision accuracy

Provides enhanced functionality with ability to set variable ratios

Continuous flow without any delay

Always under pressure

Integrated resin flow control

Ideal for doming decals of all size and shape, from large format to scripting to micro doming

Compact metering group (system)

Low maintenance, components easy to replace at an affordable price

No cylinders, seals, shafts or external pumps that require service

Multi-pump system’s available for use with additives like glitter, perfume or color

Multi-pump system’s permits you to choose resin hardness via machine console

Best Gear Pumps Technology

Technical features

Ratio 100:100

Continuous resin feeding from Degassing System

Vacuum table working area mm 1500 x 500 with 2 separated vacuum areas

X and Y motion with high performing AC brushless servo-motors, Pneumatic Z motion

Axis position repeatability +/- 0.2mm

DomesXYW path creation software

Automatic washing with solvent circuit

Emergency washing in case of power loss

Single and Multiple nozzles distribution heads: 4, 5, 6, 16 nozzles

Nozzles: 2mm, 1.5mm, 1mm, 0.7mm

Splitters 1->3 and 1->2 to increase number of distribution head’ s exits

Stainless steel static mixer

Service requirements – power supply: 230 V, 50 Hz, 10 A (60 Hz available as option): pneumatic supply 6-8 bar (80-120psi), 100L reserve

Energy consumption: 0.3 Amps, 1.8 Amps with vacuum on, 2.2. Amps during degassing

CE approved machine
